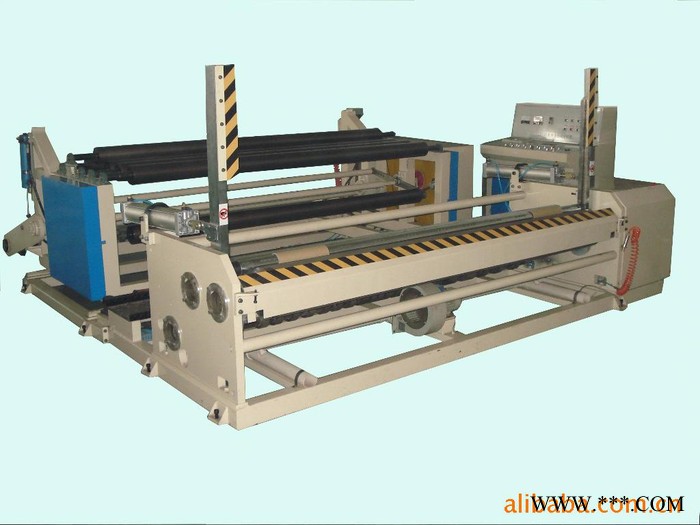

主要技術參數

Main technical parameters

1.適用范圍：1600-3500mm幅寬，有效工作幅寬1700-3400mm

1 scope of application:1600-3500mm width,effective working width1700-3400mm

2.加工定量：14-150g/m2熱風、熱軋水刺無紡布。

2quantitative processing:14-150g/m 2hot,hot rollingnon-woven fabrics.

3.**小分切寬度：剪切式50mm,端面平整度±1mm.

3minimum cutting width:sheartype50mm,surfaceroughness1mm.

4.原料卷直徑：Φ1200mm.

4raw materials roll diameter:diameter 1200mm.

5.成品卷直徑：Φ1200mm(特殊規格分切待定)。

5 the productroll diameter:diameter 1200mm(special specificationSlitterpending).

6.設備結構：墻板與框架式。

6the equipment structure: walland frame.

7.復卷輥是鋼輥、防滑粘膠帶輥、膠輥結構組成（根據要求配置）。

7rewinding roller consists of steel roller,non slipadhesive taperoller,rubber rollerstructure(according to the requirement ofconfiguration).

8.復卷輥傳動變速為P2變速器（臥式）調節。

8rewinding roller drivegearforP2 transmission(horizontal)regulation.

9.該設備配有自動（手動）漲力控制同步調節，幅寬誤差保持在±1mm（漲力控制為磁粉控制），有國產與進口兩種配置。

9the device is equipped with automatic(manual)tensioncontrol of synchronouscontrol,widtherror within± 1mm(tension controlformagnetic powder control),there aredomestic and importedtwo configuration.

10. 液壓上料，氣漲軸定位，中心放卷，安全夾盤固定。

10hydraulic feeding,gas expansion shaftpositioning,centerrewinding,safetychucksare fixed.

11. 氣壓卸料，氣漲軸定位，在兩復卷軸中心收卷，固定槽中升降。

11airdischarge,gas expansion shaftpositioning,coilingin tworewinding shaftcenter,liftingfixing groove.

12. 設備中的導布管均勻鋁型材定做，無阻力，導向性能好。

12 cloth guidingequipment in thetubemade of aluminium material,no resistance,good guide performance.

13. 機械速度：0-200m/min。

13 mechanicalspeed: 0-200m/min.

14. 電控部分設計安裝規范，配有急停功能，且保持漲力不變。

14electrical part design andinstallation specification,equipped with emergency stopfunction,and keep thetensionconstant.

15. 采用變頻調速控制，電機功率3kw。

15adopt frequency control of motor speed,motor power 3kw.

16. 自動糾偏控制一個端面的整齊度。

The uniformity of16 automaticcontrolone end.
